Major Structural Repair: From Water Damage Disaster to Seamless Spa Retreat

Location

Orting, WA

Date

March 2025

Project type

Structural Repair And Bathroom Modernization

Cost

$20k-$30k

Duration

6-8 Weeks

Project Photos

Scroll to view - click an image for more details

This extensive Parkland project began with addressing significant water damage originating near a bathroom window, which had compromised a large portion of an exterior wall. Our team undertook major structural repairs, meticulously removing and rebuilding a 9'x6' section of the wall, including studs, sheathing, and siding, ensuring a seamless exterior finish indistinguishable from the original structure.

With the home's integrity restored, we proceeded with a complete interior bathroom renovation. The outdated layout was transformed:

+ The old tub was replaced with a spacious 4'x6' custom walk-in shower featuring a pebble tile floor, large format porcelain tile walls, a built-in bench, a custom niche, and a modern sliding glass enclosure. A smaller, strategically placed window was integrated into the new shower design.

+ We utilized premium waterproofing systems, including a Schluter pre-sloped tray, Hardiebacker board, Schluter-Kerdi fabric for seams, and RedGard liquid membrane, ensuring long-term durability.

+ The worn tile flooring was removed and replaced with elegant engineered hardwood throughout the main bathroom area.

+ To optimize space for the larger shower, the original 5' double vanity was replaced with a stylish 4' single-sink vanity with a solid surface top.

+ Functionality was enhanced by converting an open shelving area into a fully enclosed closet with a bi-fold door.

+ All plumbing and electrical fixtures were updated to modern, efficient models, requiring rerouting of supply lines and minor electrical work to suit the new layout.

+ The renovation was completed with fresh paint on both the interior walls and the repaired exterior section.

This project showcases our ability to manage complex structural repairs necessitated by water damage and execute a high-quality, full-scale bathroom modernization, resulting in a beautiful, functional, and durable space for the homeowners.

Final Pic

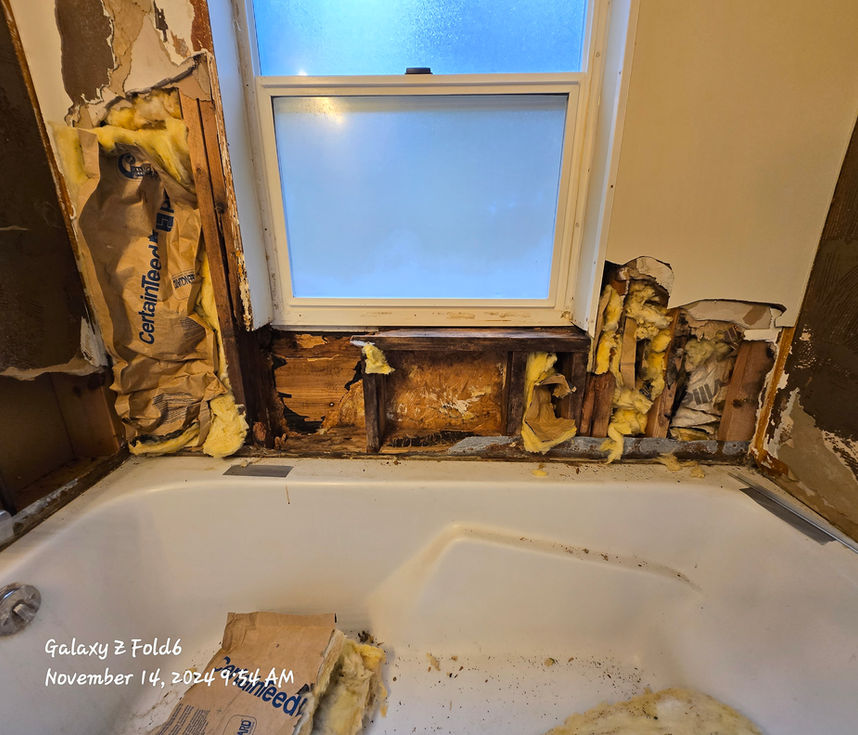

Open wall cavity below a frosted bathroom window showing dark, water-damaged wooden studs and discolored, exposed insulation above a bathtub.

Initial Water Damage Below Bathroom Window

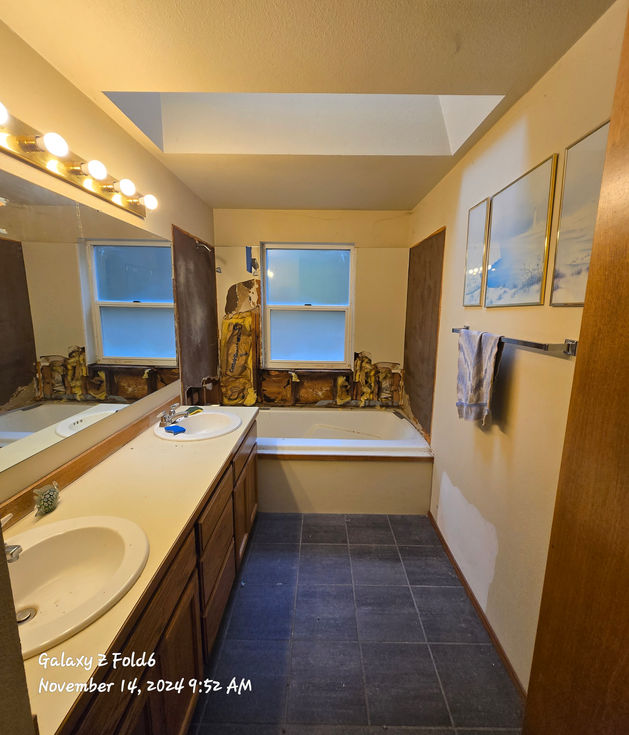

Overview of the bathroom before renovation: double vanity on left, tub at the far end under a window with wall damage visible below it, dark floor tiles, and a skylight above.

Full Bathroom View - Before Renovation

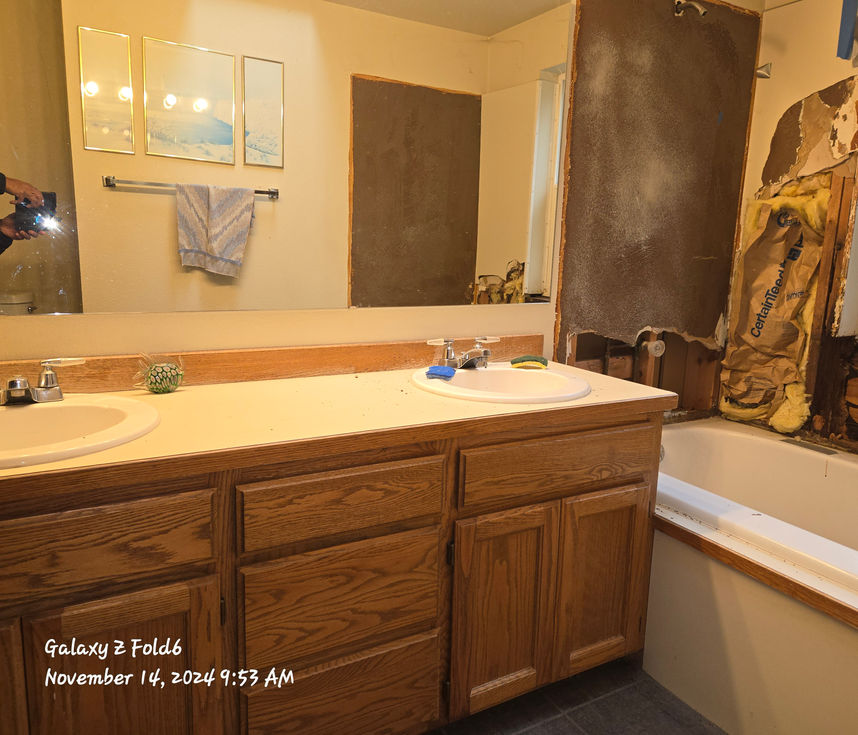

Bathroom prior to renovation featuring a large oak-finish double vanity, laminate countertop, and large mirror, with the damaged wall near the tub visible on the right.

Pre-Renovation Bathroom - Vanity Area

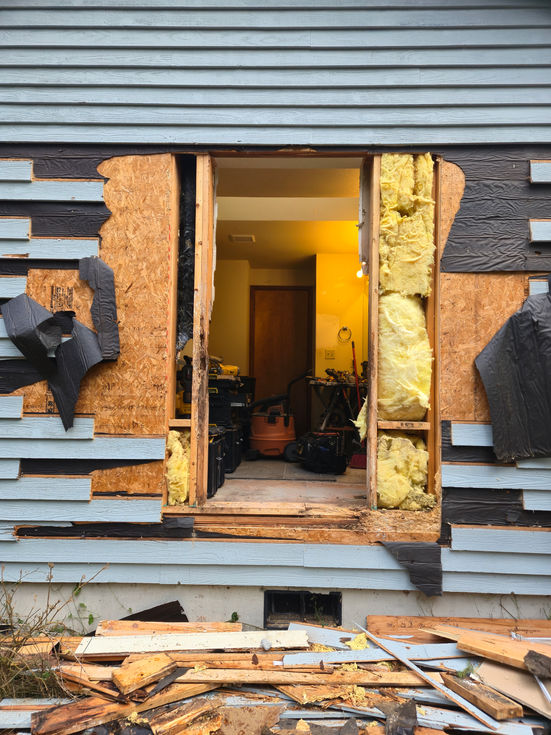

Large rectangular opening in the exterior wall of a house with blue siding, revealing interior wall framing and insulation; demolition debris is on the ground below.

Exterior Wall Section Removed

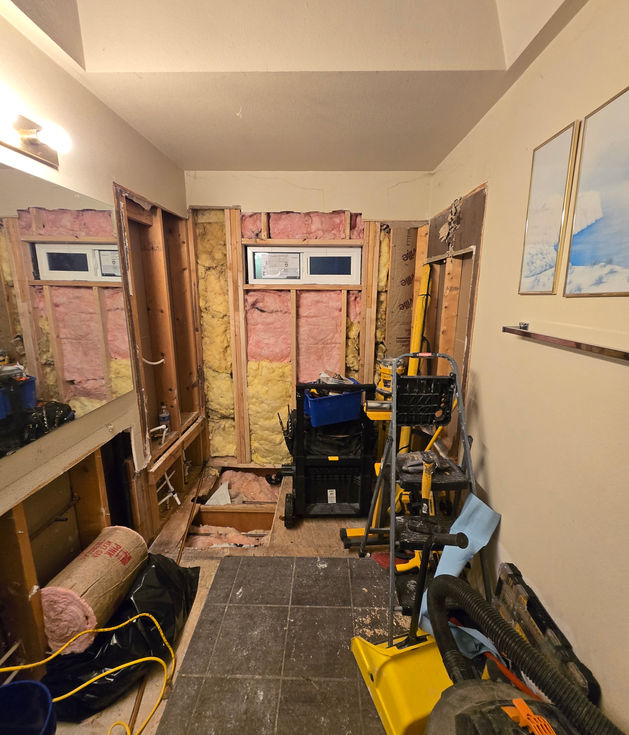

Interior view of bathroom under construction showing new timber framing and insulation installed on the back wall, featuring a new, small, horizontally oriented window

New Wall Framing, Insulation, and Smaller Window

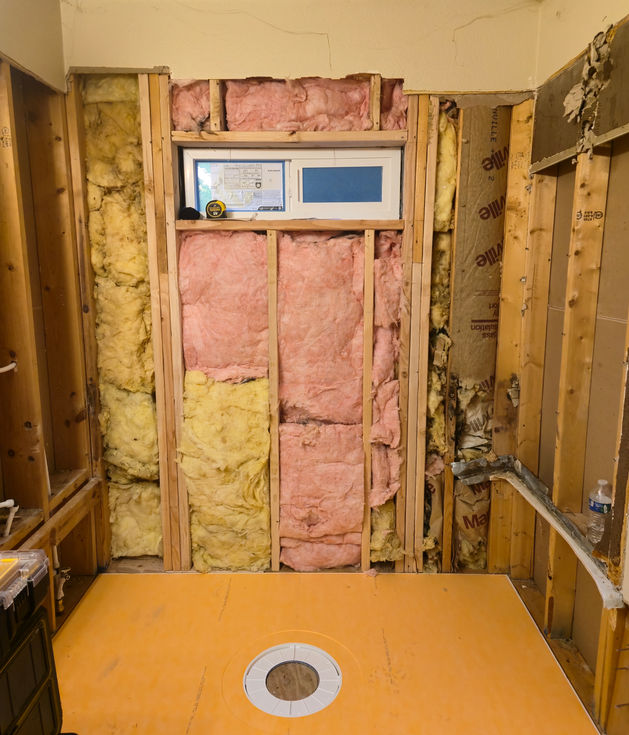

An orange, pre-fabricated Schluter shower tray with a central drain opening installed in the framed shower enclosure; walls show exposed studs and insulation.

Walk-in Shower Base Installation (Schluter Tray)

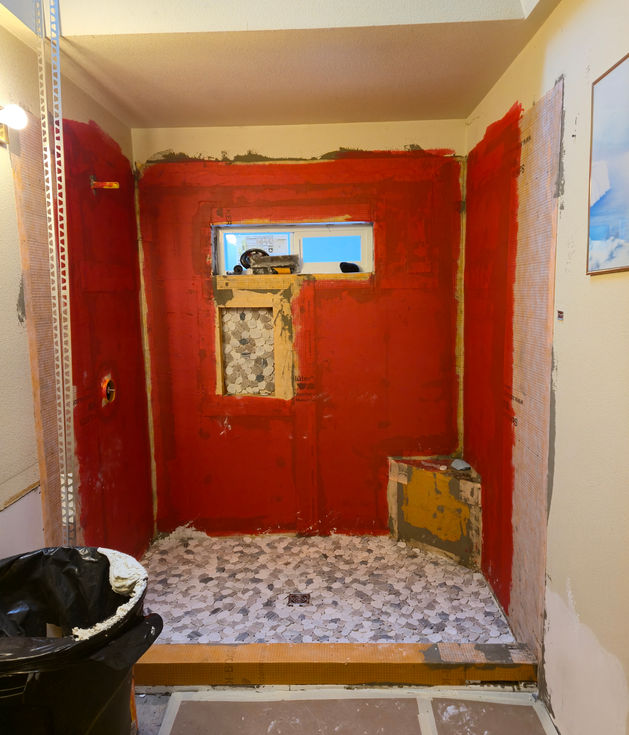

Shower stall walls coated in red RedGard waterproofing membrane, with pebble tile installation underway on the floor and inside a recessed wall niche. A corner seat structure is visible in the lower right.

Shower Waterproofing and Initial Tiling

Shower stall walls being tiled with large grey stone-look tiles, held by numerous yellow and red tile leveling spacers. Tiling progress is visible around the window and niche.

Wall Tile Installation - Shower Enclosure

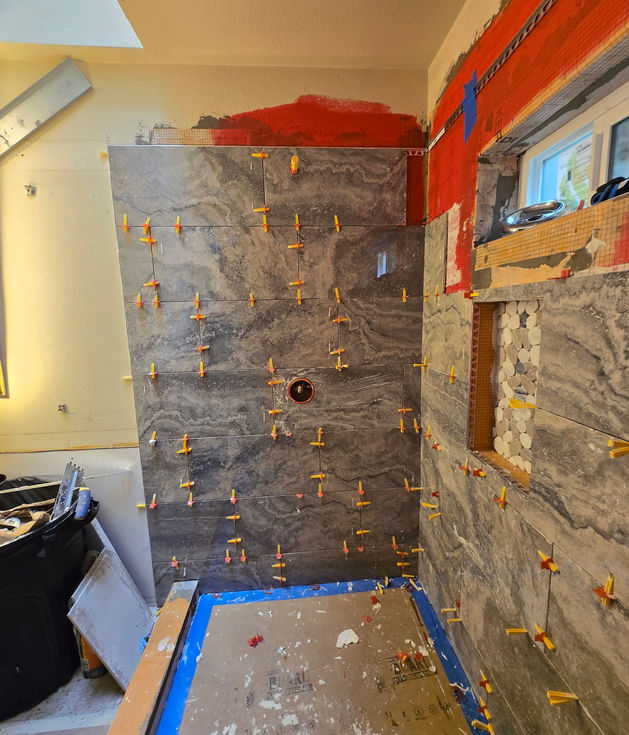

Shower wall being tiled with large grey tiles featuring a round cutout for the shower valve; numerous tile leveling clips are in place. The back wall with niche and window is visible to the right.

Wall Tile Progress - Plumbing Wall

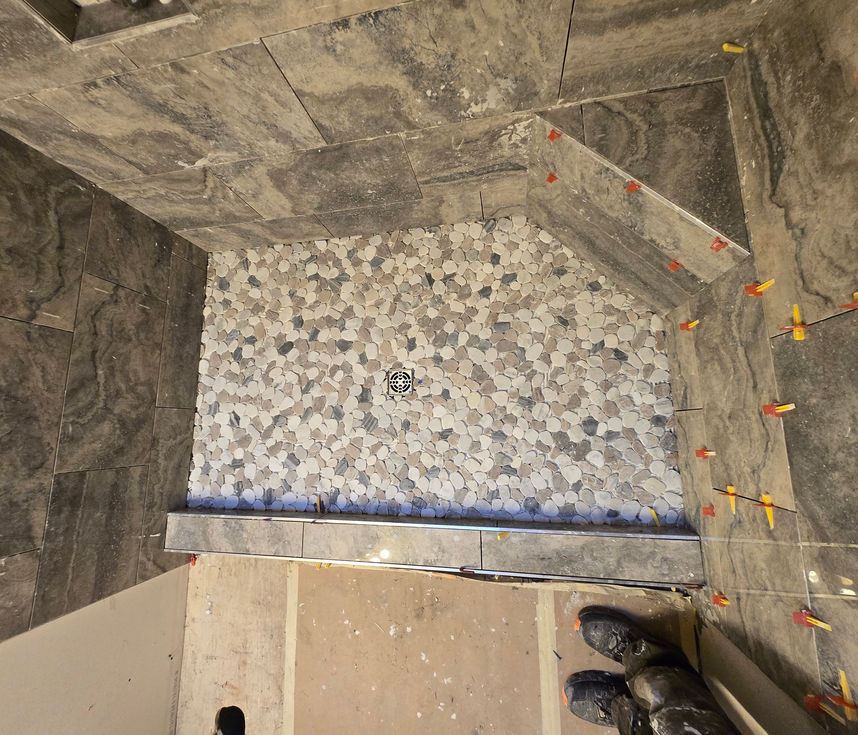

Top-down view of a walk-in shower with completed light-colored pebble tile floor, central square drain cover, tiled curb, and a corner bench tiled with large grey tiles.

Shower Floor, Curb, and Bench - Tile Complete

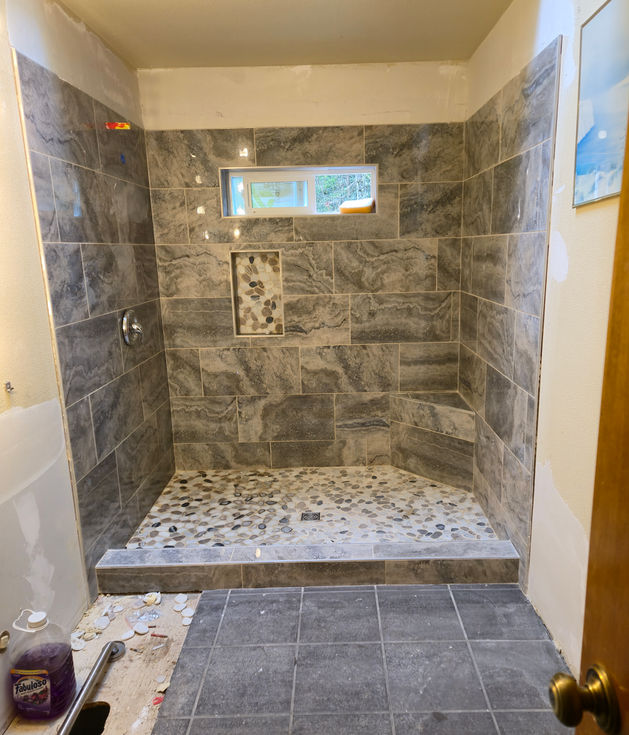

Fully tiled and grouted walk-in shower featuring large grey wall tiles, a light pebble tile floor, tiled niche below the window, and a tiled corner bench. Chrome shower valve trim is visible on the left wall.

Completed Shower Tile & Grout - Overview

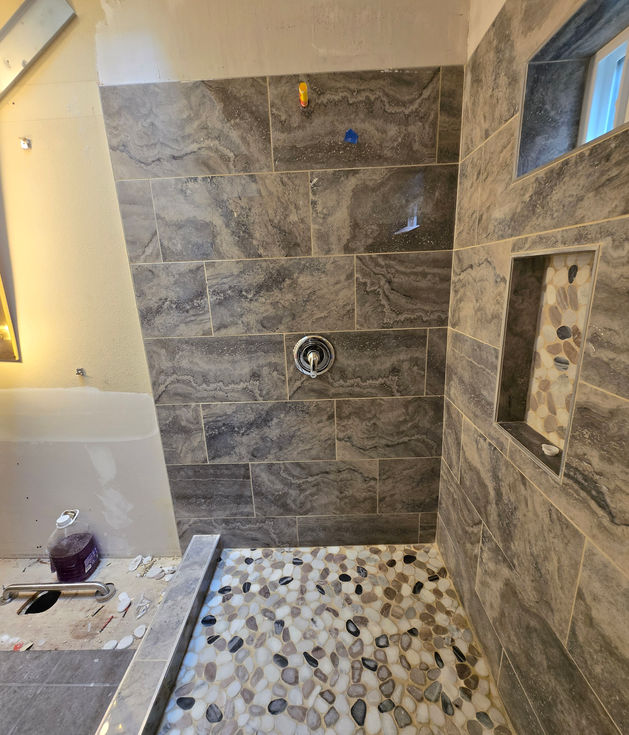

The left wall of the shower, fully tiled with large grey stone-look tiles and grouted, featuring the installed chrome shower valve trim. Pebble tile floor visible below.

Completed Tile & Grout - Plumbing Wall Detail

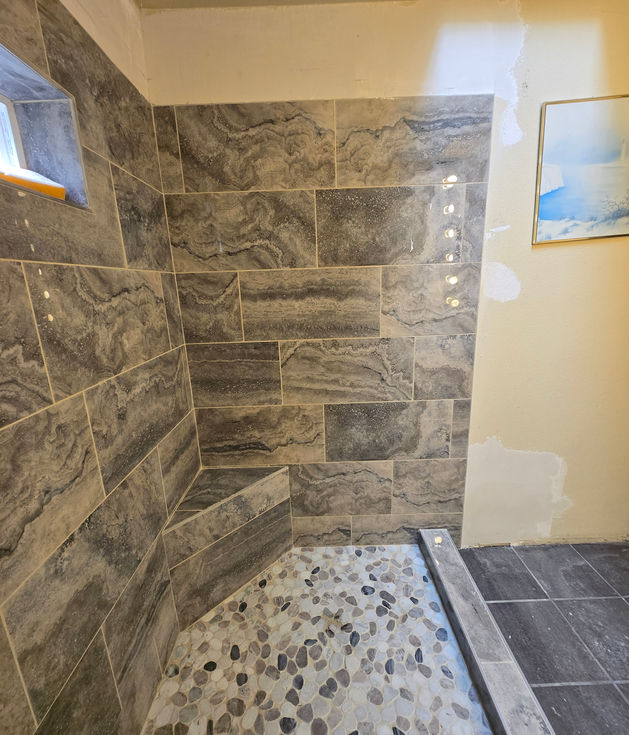

Fully tiled and grouted back wall and corner bench of the walk-in shower, using large grey stone-look tiles. The pebble tile floor is visible in the foreground.

Completed Tile & Grout - Back Wall and Bench

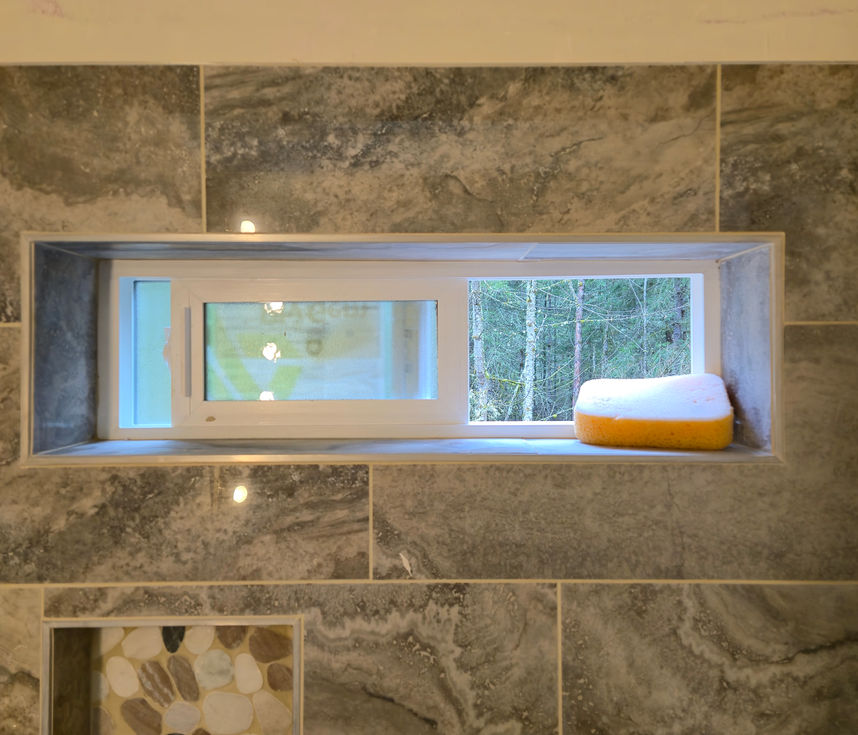

Close-up view of a horizontal window inside the shower, showing how the surrounding large grey wall tiles neatly wrap the window's interior frame and sill.

Detail of Tiled Window Reveal

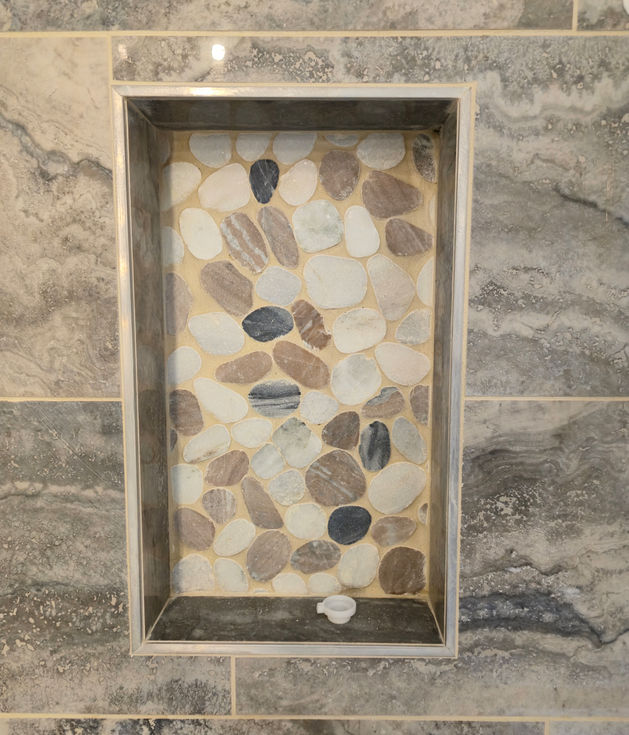

Close view of a recessed shower niche with a pebble tile mosaic on the back surface and framed with large grey tiles on the sides and sill.

Custom Tiled Shower Niche

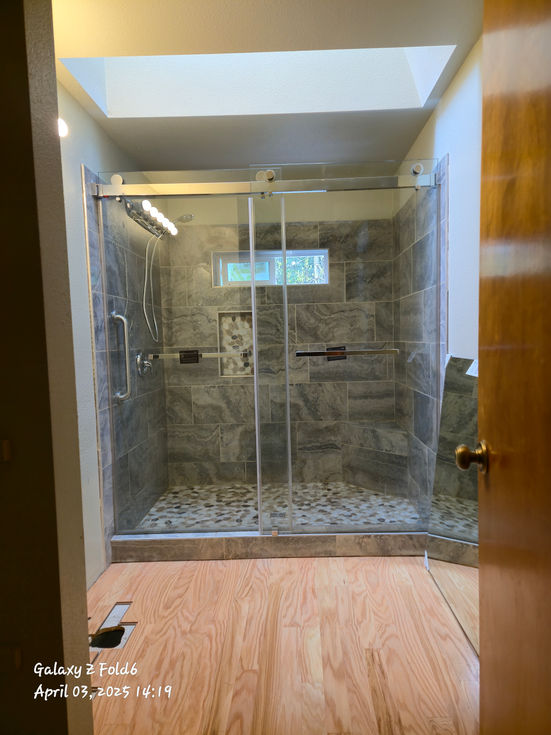

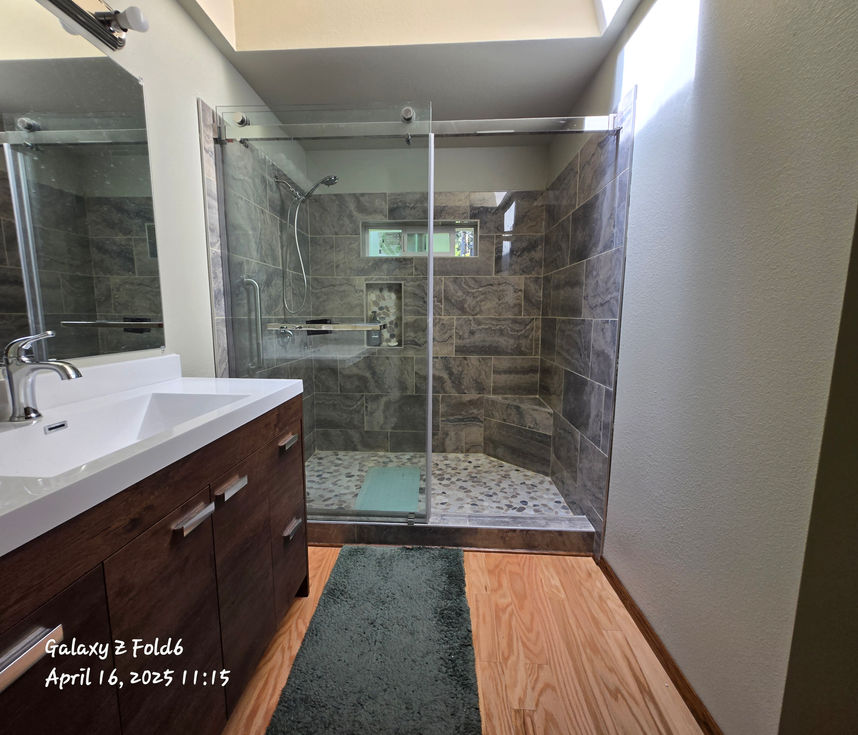

Front view of the tiled walk-in shower, now enclosed by a newly installed sliding glass door system with chrome header bar and handle.

Glass Shower Door Installation Complete

Bathroom floor covered in newly installed light-colored engineered wood planks extending from the foreground to the completed shower enclosure in the background.

New Engineered Wood Flooring Installed

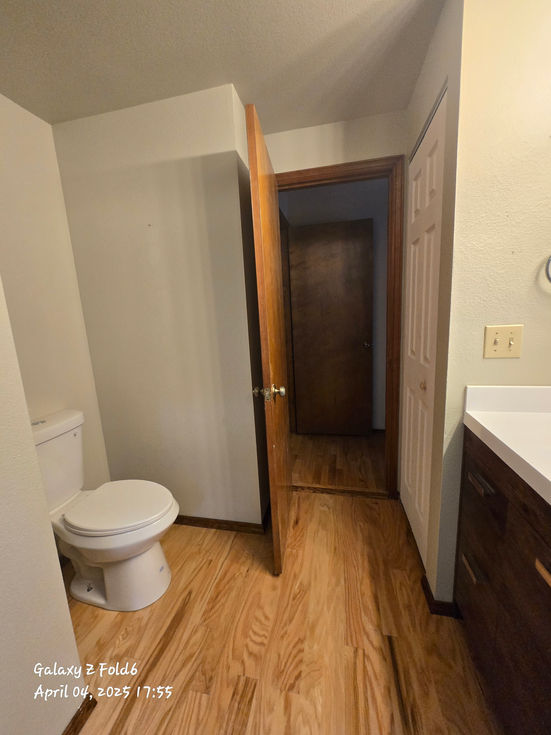

Bathroom view showing the new light wood flooring, a white toilet installed in an alcove on the left, and partial view of a dark wood vanity and white closet door on the right.

New Flooring and Toilet Installation

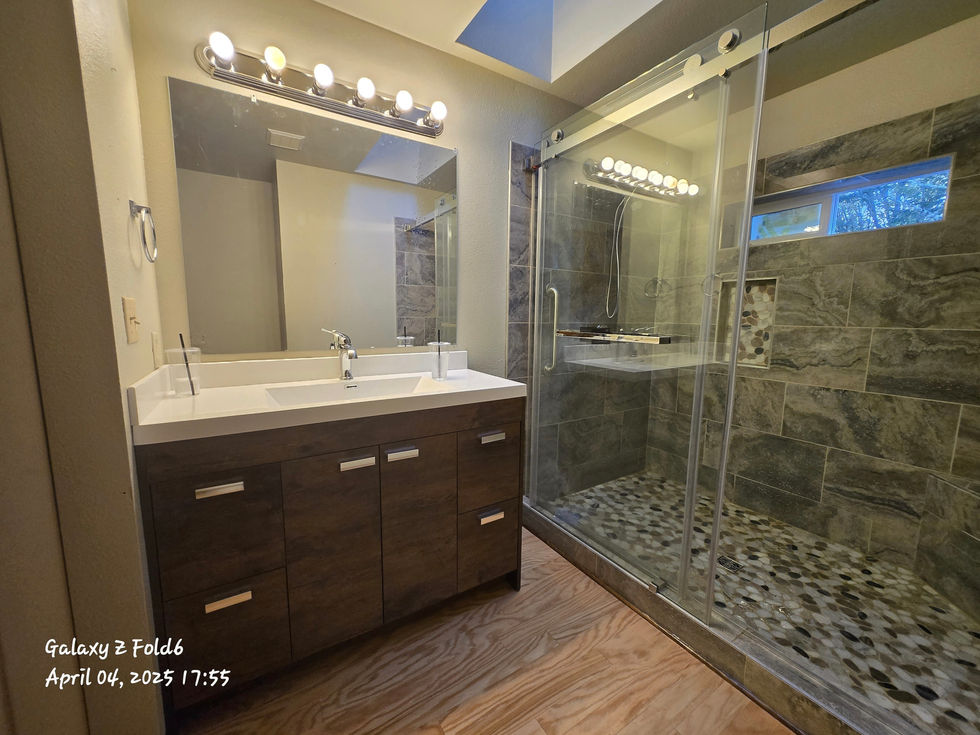

Renovated bathroom showing a dark wood vanity with a white countertop and sink, a large mirror, a contemporary light fixture, the adjacent glass shower enclosure, and light wood flooring.

Completed Renovation: Vanity and Shower View

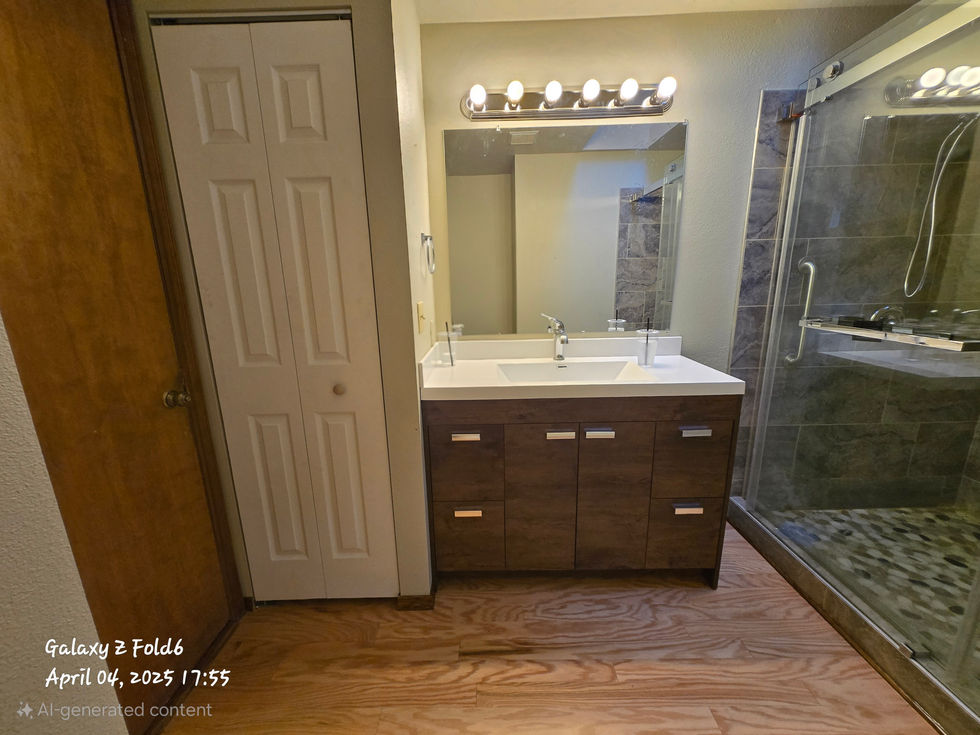

Front view of the bathroom vanity area: a dark wood vanity cabinet with white countertop and sink is centered below a mirror and light fixture, with a white bi-fold closet door to the left and the shower edge to the right.

Finished Vanity Wall - Front View

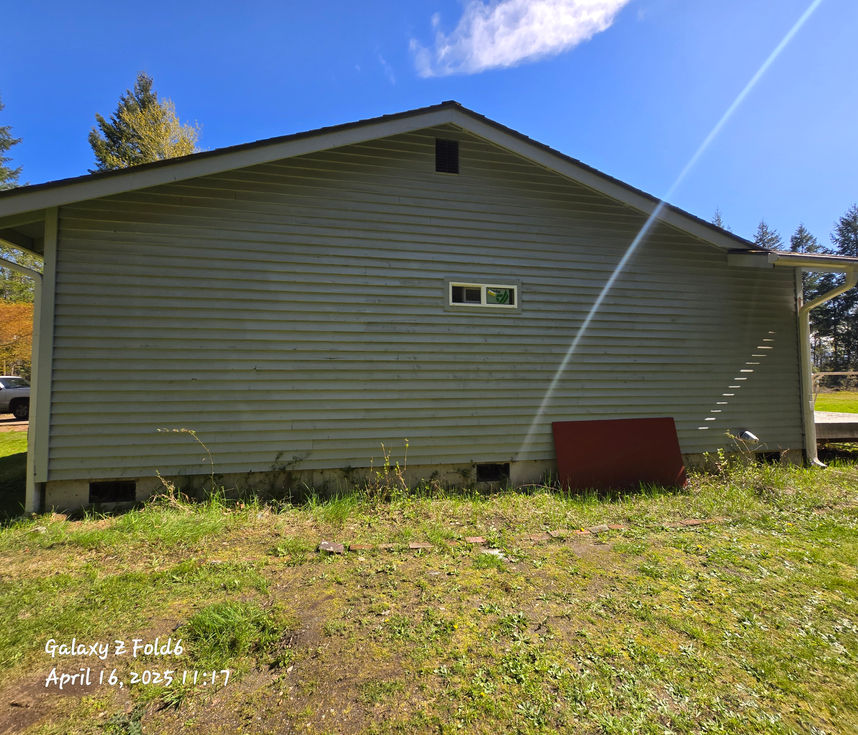

Exterior side view of a house with greenish-grey siding, showing a small horizontal window. The siding looks uniform, with no visible indication of the previous major wall repair.

Completed Exterior Repair and Seamless Finish

Fully renovated bathroom showing vanity on the left, glass shower on the right, light wood flooring with a dark bath mat in front of the shower, and a lighter mat inside the shower.

Completed Bathroom - Client Use
